Introduction to S-Type Load Cells
In the realm of force measurement and weighing applications, S-type load cells have emerged as a reliable and versatile solution. These specialized transducers are designed to convert applied forces into electrical signals, enabling accurate measurement and monitoring of weights, tensions, and compressions. As you embark on your journey to understand the intricacies of S-type load cells, this comprehensive guide will serve as your trusted companion, equipping you with the knowledge and insights necessary to make informed decisions.

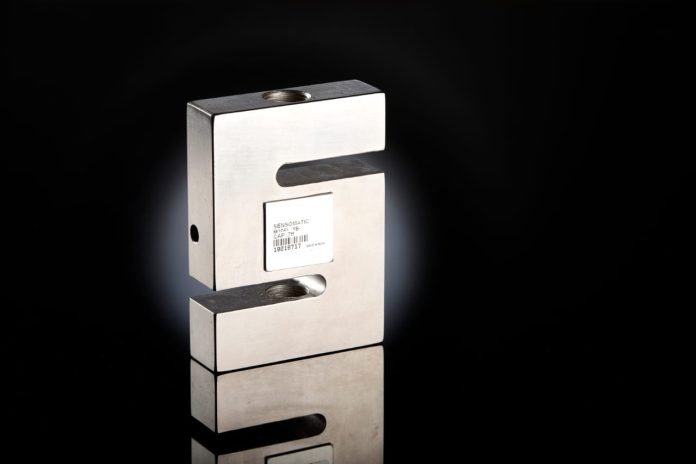

S-type load cells, aptly named for their distinctive S-shaped form, are widely utilized across various industries, from industrial automation and manufacturing to logistics and transportation. Their unique design and construction allow for precise and consistent force measurements, making them an indispensable component in numerous weighing and force-sensing applications.
Whether you’re an engineer, a manufacturer, or a hobbyist seeking to enhance your understanding of these remarkable devices, this guide will delve into the intricacies of S-type load cells, covering their working principles, advantages, applications, selection criteria, and much more. By the end of this comprehensive exploration, you’ll be well-equipped to navigate the world of S-type load cells with confidence.
How S-Type Load Cells Work
At the core of an S-type load cell’s operation lies the principle of strain gauge technology. These devices are designed with an S-shaped metallic element that deforms minutely when subjected to an external force. This deformation, however slight, is precisely measured by strategically placed strain gauges, which are essentially resistors that change their electrical resistance in response to the applied strain.
When a force is applied to the S-shaped element, it experiences compression or tension, causing the strain gauges to alter their resistance values. These minute changes in resistance are then converted into an electrical signal through a specialized circuit, known as a Wheatstone bridge. This signal is proportional to the applied force, enabling accurate and reliable force measurements.
The S-shaped design of these load cells offers several advantages, including increased sensitivity, improved linearity, and enhanced resistance to off-axis loading. By strategically positioning the strain gauges along the curved surfaces of the S-shaped element, the effects of undesirable forces, such as side loads or moments, are minimized, ensuring accurate and consistent force measurements.
Advantages of S-Type Load Cells
S-type load cells offer a myriad of advantages that contribute to their widespread adoption across various industries. Here are some of the key benefits that set these devices apart:
- High Accuracy and Precision: S-type load cells are renowned for their exceptional accuracy and precision in force measurements. Their unique design and construction, combined with advanced strain gauge technology, ensure reliable and consistent readings, even under demanding conditions.
- Compact and Robust Design: Despite their compact size, S-type load cells are engineered to withstand harsh environments and heavy loads. Their robust construction, often featuring stainless steel or aluminum alloy housings, makes them suitable for a wide range of applications, including those with challenging environmental conditions.
- Versatility: S-type load cells can be configured to measure a wide range of forces, from small-scale precision measurements to heavy-duty industrial applications. This versatility allows for their integration into diverse systems, catering to a broad spectrum of weighing and force-sensing requirements.
- Resistance to Off-Axis Loading: The S-shaped design of these load cells minimizes the effects of undesirable forces, such as side loads or moments, ensuring accurate and reliable measurements even in challenging conditions.
- Long-Term Stability: With proper installation, calibration, and maintenance, S-type load cells exhibit exceptional long-term stability, ensuring consistent and reliable performance over an extended period.
Common Applications of S-Type Load Cells
The versatility and precision of Reliable S-type Load Cells for Precise Measurement
have made them invaluable in a wide range of applications across various industries. Here are some common applications where these devices play a crucial role:
- Industrial Weighing Systems: S-type load cells are extensively used in industrial weighing systems, such as floor scales, platform scales, and tank weighing systems, providing accurate weight measurements for inventory management, process control, and quality assurance.
- Material Handling and Logistics: In the material handling and logistics sectors, S-type load cells are employed in conveyor belt scales, crane scales, and other material handling equipment, ensuring precise weight measurements for efficient and optimized operations.
- Aerospace and Automotive Testing: The high accuracy and robustness of S-type load cells make them suitable for aerospace and automotive testing applications, including fatigue testing, stress analysis, and component load testing.
- Medical and Scientific Instrumentation: In the medical and scientific fields, S-type load cells are utilized in various instruments and devices, such as precision balances, force measurement systems, and biomechanical analysis equipment.
- Robotics and Automation: As robotics and automation technologies continue to advance, S-type load cells play a crucial role in force sensing and control systems, enabling precise force measurements and feedback for robotic applications.
Factors to Consider When Choosing an S-Type Load Cell
Selecting the appropriate S-type load cell for your application is crucial to ensure accurate and reliable force measurements. Here are some key factors to consider when choosing an S-type load cell:
- Load Capacity: Determine the maximum force or weight that needs to be measured, and select an S-type load cell with a suitable capacity range. It’s generally recommended to choose a load cell with a capacity slightly higher than the anticipated maximum load to ensure optimal performance and longevity.
- Accuracy and Precision Requirements: Evaluate the accuracy and precision requirements of your application. S-type load cells are available in various accuracy classes, ranging from high-precision devices for scientific applications to less stringent options for general industrial use.
- Environmental Conditions: Consider the environmental conditions in which the load cell will operate, such as temperature, humidity, vibration, and exposure to chemicals or corrosive substances. Choose an S-type load cell with appropriate protection and construction materials to withstand the expected operating conditions.
- Electrical Output: S-type load cells can provide different electrical output signals, such as mV/V (millivolt per volt), 4-20 mA, or digital outputs. Ensure that the chosen load cell’s output is compatible with your data acquisition system or instrumentation.
- Physical Dimensions and Mounting Requirements: Evaluate the available space and mounting requirements for your application. S-type load cells come in various sizes and configurations, allowing for optimal integration into your system or equipment.
- Certifications and Approvals: Depending on your industry or application, certain certifications or approvals may be required for the load cell, such as NTEP (National Type Evaluation Program) or OIML (International Organization of Legal Metrology) approvals for legal-for-trade applications.
By carefully considering these factors, you can select an S-type load cell that meets your specific requirements, ensuring accurate and reliable force measurements while optimizing performance and longevity.
S-Type Load Cell Mounting Options
Proper mounting and installation of S-type load cells are crucial for ensuring accurate and reliable force measurements. These devices are designed with various mounting options to accommodate different applications and installation requirements. Here are some common mounting options for S-type load cells:
- Compression Mounting: In this mounting configuration, the S-type load cell is placed between two rigid surfaces, and the force to be measured is applied along the primary axis of the load cell. This mounting method is commonly used in platform scales, tank weighing systems, and other applications where the load is applied vertically.
- Tension Mounting: For applications where the force to be measured is a tensile force, such as in cable tension monitoring or material testing, S-type load cells can be mounted in a tension configuration. In this setup, the load cell is secured at both ends, and the tensile force is applied along its primary axis.
- Bending Beam Mounting: In certain applications, such as weighing hoppers or silos, the S-type load cell is mounted as part of a bending beam assembly. This configuration allows the load cell to measure the force generated by the deflection of the bending beam, providing accurate weight measurements.
- Double-Ended Shear Beam Mounting: This mounting option involves securing the S-type load cell at both ends, with the force applied perpendicular to the primary axis. This configuration is commonly used in truck scales, rail scales, and other applications where shear forces need to be measured.
- Single-Ended Shear Beam Mounting: Similar to the double-ended shear beam mounting, this configuration involves securing one end of the S-type load cell while the other end is free to move. The force is applied perpendicular to the primary axis, and this mounting method is often used in hopper scales and certain material handling applications.
Regardless of the mounting option chosen, it is crucial to follow the manufacturer’s instructions and recommendations for proper installation and alignment. Incorrect mounting or misalignment can lead to inaccurate measurements, reduced performance, and potential damage to the load cell.
Understanding Load Cell Specifications: Capacity, Accuracy, and Sensitivity
When evaluating and selecting an S-type load cell, it is crucial to understand the key specifications that define its performance and capabilities. Three essential specifications to consider are capacity, accuracy, and sensitivity:
- Capacity: The capacity of a load cell refers to the maximum force or weight that it can measure safely and accurately. S-type load cells are available in a wide range of capacities, from a few kilograms to several tons, catering to various applications. It is essential to select a load cell with a capacity slightly higher than the anticipated maximum load to ensure optimal performance and longevity.
- Accuracy: Accuracy is a measure of how closely the load cell’s output matches the true applied force or weight. S-type load cells are available in different accuracy classes, typically expressed as a percentage of the rated output or full-scale output. Higher accuracy classes are required for applications demanding precise measurements, such as scientific instrumentation or legal-for-trade weighing systems.
- Sensitivity: Sensitivity refers to the change in the load cell’s output signal in response to a change in the applied force or weight. It is typically expressed in millivolts per volt (mV/V) or a similar unit. A higher sensitivity value indicates that the load cell can detect smaller changes in force or weight, making it suitable for applications requiring high resolution and precision.
In addition to these key specifications, other important parameters to consider when selecting an S-type load cell include:
- Safe Load Limit: The maximum force or weight that the load cell can withstand without permanent deformation or damage.
- Temperature Compensation: The ability of the load cell to maintain accurate measurements over a specified temperature range.
- Environmental Protection: The level of protection against environmental factors such as moisture, dust, and corrosion, often indicated by an ingress protection (IP) rating.
- Electrical Output: The type of electrical output signal provided by the load cell, such as mV/V, 4-20 mA, or digital outputs.
By understanding these specifications and selecting an S-type load cell that meets your application’s requirements, you can ensure accurate and reliable force measurements while optimizing performance and longevity.
S-Type Load Cell Price Range and Factors Affecting the Cost
The cost of an S-type load cell can vary significantly depending on several factors. Understanding these factors can help you make an informed decision when budgeting for your force measurement or weighing application. Here’s an overview of the price range and the factors that influence the cost of S-type load cells:
- Price Range: S-type load cells are available at various price points, ranging from a few hundred dollars for basic models to several thousand dollars for high-precision, specialized units. The typical price range for a standard S-type load cell can be anywhere from $200 to $2,000, depending on the capacity, accuracy, and features.
- Capacity and Size: Generally, larger capacity and physically larger S-type load cells tend to be more expensive than smaller ones. This is due to the increased material costs, manufacturing complexity, and additional components required to handle higher loads.
- Accuracy and Precision: Load cells with higher accuracy and precision ratings typically command a higher price. Manufacturers invest more resources in the design, materials, and calibration processes to achieve tighter tolerances and better performance, which translates to higher costs.
- Environmental Protection: S-type load cells designed for harsh environments, such as those with IP67 or IP68 ingress protection ratings, tend to be more expensive. The additional sealing, protective coatings, and specialized materials used to withstand extreme conditions contribute to the increased cost.
- Certifications and Approvals: Load cells that meet specific industry certifications or approvals, such as NTEP (National Type Evaluation Program) or OIML (International Organization of Legal Metrology), often have a higher price tag due to the additional testing, documentation, and compliance requirements.
- Brand and Reputation: Established and reputable manufacturers with a proven track record of producing high-quality load cells often command a premium price compared to lesser-known or generic brands.
- Customization and Special Features: If your application requires customized features, such as specialized mounting configurations, unique output signals, or specific material requirements, the cost of the S-type load cell can increase significantly due to the additional engineering and manufacturing efforts involved.
It’s important to note that while cost is a significant factor, it should not be the sole consideration when selecting an S-type load cell. Factors such as accuracy, reliability, and suitability for your specific application should take precedence to ensure optimal performance and longevity.
If you’re in need of a reliable and high-performance S-type load cell for your force measurement or weighing application, consider exploring our extensive range of products. Our team of experts is dedicated to helping you find the perfect solution that meets your unique requirements and budget. Contact us today to discuss your needs and receive personalized recommendations tailored to your specific application.
S-Type Load Cell Calibration and Maintenance
Proper calibration and maintenance are essential to ensure the long-term accuracy and reliability of S-type load cells. These devices are designed to provide precise force measurements, but factors such as environmental conditions, wear and tear, and mechanical stress can impact their performance over time. By following recommended calibration and maintenance practices, you can maximize the lifespan and optimize the performance of your S-type load cells.
Calibration
Calibration is the process of comparing the output of the load cell to known reference weights or forces and adjusting the output to match the reference values. Regular calibration is crucial to maintain the accuracy and precision of S-type load cells, as well as to comply with industry standards and regulations.
- Initial Calibration: Most manufacturers provide an initial calibration certificate with each S-type load cell. This ensures that the device meets the specified accuracy and performance standards before it is shipped.
- Periodic Calibration: It is recommended to calibrate S-type load cells periodically, typically every 12 to 24 months, or as specified by the manufacturer or industry regulations. The calibration interval may vary depending on factors such as the application, environmental conditions, and usage patterns.
- Calibration Procedures: Calibration procedures for S-type load cells involve applying known reference weights or forces and adjusting the load cell’s output to match the reference values. This process may involve using specialized calibration equipment, such as precision weights, force application systems, and data acquisition software. It is crucial to follow the manufacturer’s recommended calibration procedures and guidelines to ensure accurate and reliable results.
Maintenance
Regular maintenance is essential to ensure the optimal performance and longevity of S-type load cells. Here are some key maintenance practices to consider:
- Visual Inspection: Regularly inspect the load cell for any signs of physical damage, corrosion, or wear and tear. Check for any loose connections, cracks, or deformities that may affect the device’s performance.
- Environmental Protection: Ensure that the load cell is protected from harsh environmental conditions, such as moisture, dust, and extreme temperatures. If necessary, replace any damaged seals or protective coatings to maintain the desired ingress protection rating.
- Electrical Connections: Inspect and secure all electrical connections to prevent signal interference or loss of connectivity. Replace any damaged or worn-out cables or connectors as needed.
- Mechanical Mounting: Check the mechanical mounting of the load cell to ensure it is securely fastened and properly aligned. Any misalignment or looseness can lead to inaccurate measurements or potential damage to the device.
- Load Cell Overload Protection: Implement appropriate measures to prevent overloading the load cell beyond its rated capacity. Overloading can cause permanent deformation or damage to the device, affecting its accuracy and performance.
- Temperature Compensation: If your application involves significant temperature variations, ensure that the load cell’s temperature compensation is properly configured and functioning as intended.
- Record Keeping: Maintain accurate records of calibration dates, maintenance activities, and any repairs or replacements performed on the load cell. This documentation can help identify patterns and facilitate timely maintenance or replacement decisions.
By following these calibration and maintenance practices, you can ensure the long-term accuracy, reliability, and optimal performance of your S-type load cells, ultimately maximizing their lifespan and minimizing downtime in your force measurement or weighing applications.
S-Type Load Cell Troubleshooting and FAQs
Even with proper installation, calibration, and maintenance, S-type load cells may occasionally encounter issues or exhibit unexpected behavior. In such cases, effective troubleshooting can help identify and resolve the underlying problems, ensuring continued accurate and reliable force measurements. Additionally, addressing common questions and concerns can provide valuable insights and guidance for users of S-type load cells.
Troubleshooting Common Issues
- Inaccurate or Inconsistent Readings: If you’re experiencing inaccurate or inconsistent readings from your S-type load cell, there are several potential causes to investigate:
- Check for any physical damage, loose connections, or misalignment of the load cell.
- Verify that the load cell is properly calibrated and within its specified temperature range.
- Inspect for any environmental factors, such as moisture, vibration, or electromagnetic interference, that may be affecting the load cell’s performance.
- No Output Signal: If the load cell is not producing any output signal, the following steps can help identify the issue:
- Check all electrical connections and wiring for any loose or damaged components.
- Ensure that the load cell is receiving the correct excitation voltage or power supply.
- Verify that the data acquisition system or instrumentation is functioning correctly and configured properly.
- Nonlinearity or Hysteresis: Nonlinearity or hysteresis issues, where the load cell’s output deviates from a linear relationship with the applied force or exhibits a difference in output depending on the direction of force application, may indicate:
- Mechanical stress or deformation of the load cell due to improper mounting or overloading.
- Environmental factors, such as temperature fluctuations or vibrations, affecting the load cell’s performance.
- Aging or degradation of the load cell components over time.
- Signal Noise or Interference: If you’re experiencing signal noise or interference in the load cell’s output, consider the following:
- Ensure proper shielding and grounding of the load cell and associated wiring.
- Identify and eliminate potential sources of electromagnetic interference (EMI) or radio frequency interference (RFI).
- Use appropriate filtering techniques or signal conditioning to reduce noise and interference.
Frequently Asked Questions (FAQs)
- How long do S-type load cells typically last? The lifespan of an S-type load cell can vary depending on factors such as the application, environmental conditions, and proper maintenance. With proper installation, calibration, and maintenance, high-quality S-type load cells can have a service life of 10 years or more.
- Can S-type load cells be used in legal-for-trade applications? Yes, S-type load cells can be used in legal-for-trade applications, such as weighing systems for commercial transactions, provided they meet the necessary certifications and approvals, such as NTEP (National Type Evaluation Program) or OIML (International Organization of Legal Metrology) certifications.
- What is the maximum temperature range for S-type load cells? The maximum temperature range for S-type load cells can vary depending on the manufacturer and specific model. Typically, they are designed to operate within a temperature range of -20°C to +70°C (-4°F to +158°F). However, some specialized models may have extended temperature ranges for extreme environments.
- How do I choose the appropriate capacity for an S-type load cell? When selecting the capacity of an S-type load cell, it is generally recommended to choose a capacity slightly higher than the anticipated maximum load, typically within 80% to 100% of the rated capacity. This ensures optimal performance and longevity while providing a safety margin to prevent overloading.
- Can S-type load cells be used in hazardous or explosive environments? Yes, some S-type load cells are designed and certified for use in hazardous or explosive environments, such as those found in the oil and gas industry or certain chemical processing plants. These load cells often feature specialized construction materials, intrinsically safe circuitry, and appropriate certifications (e.g., ATEX, IECEx) for safe operation in such environments.
By addressing common issues through effective troubleshooting and providing answers to frequently asked questions, users of S-type load cells can gain a better understanding of these devices, optimize their performance, and ensure accurate and reliable force measurements in their applications.
Conclusion: Choosing the Right S-Type Load Cell for Your Application
In the ever-evolving world of force measurement and weighing applications, selecting the right S-type load cell is a critical decision that can significantly impact the accuracy, reliability, and overall performance of your system. As you navigate through the vast array of options available, it is essential to carefully consider the specific requirements of your application and match them with the appropriate load cell specifications.
Throughout this comprehensive guide, we have explored the intricacies of S-type load cells, from their working principles and advantages to common applications and mounting options. We have delved into the key factors to consider when choosing an S-type load cell, such as load capacity, accuracy, environmental conditions, and certifications.
By understanding the specifications, price ranges, and factors affecting the cost, you can make an informed decision that aligns with your budget and performance requirements. Additionally, we have provided insights into calibration and maintenance practices, ensuring the long-term accuracy and optimal performance of your S-type load cells.
Effective troubleshooting and addressing common questions have equipped you with the knowledge to identify and resolve potential issues, maximizing the lifespan and reliability of these remarkable devices.
As you embark on your journey to select the ideal S-type load cell for your application, remember that a well-informed decision can make a significant difference in the success of your force measurement or weighing system.
Embrace the wealth of information provided in this guide, consult with Best Load Cell Manufacturers in India experts in the field, and carefully evaluate your specific needs to ensure a seamless integration and optimal performance.
In the ever-evolving landscape of force measurement and weighing technologies, staying informed and making educated choices will position you at the forefront of innovation, enabling you to achieve unparalleled accuracy, efficiency, and success in your endeavors.
